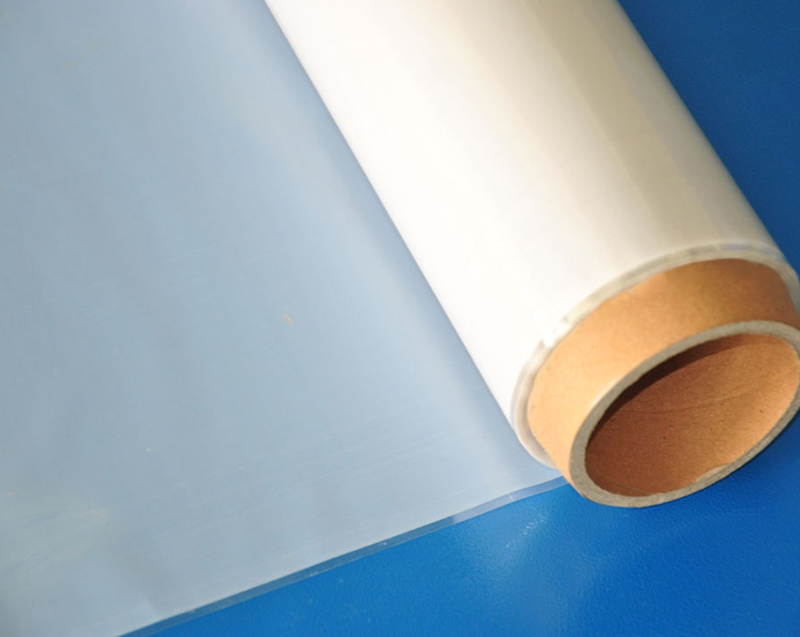

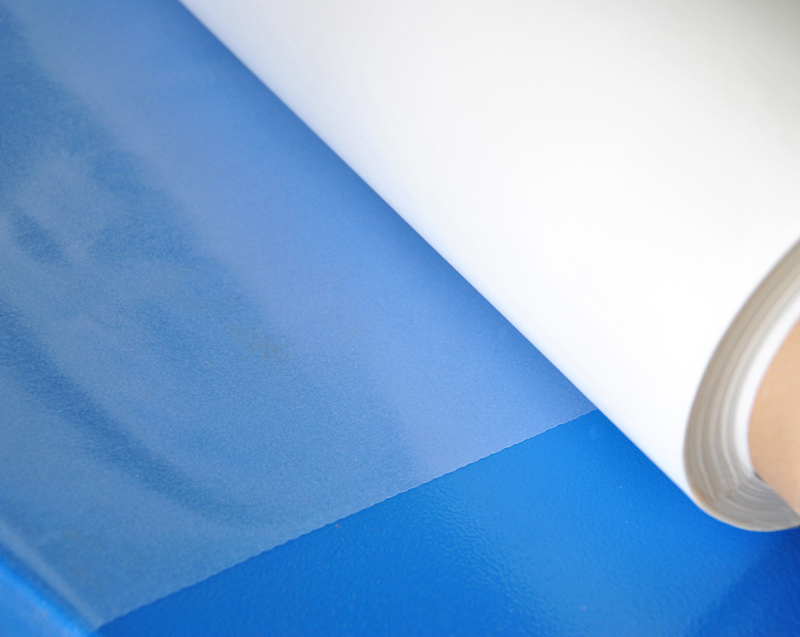

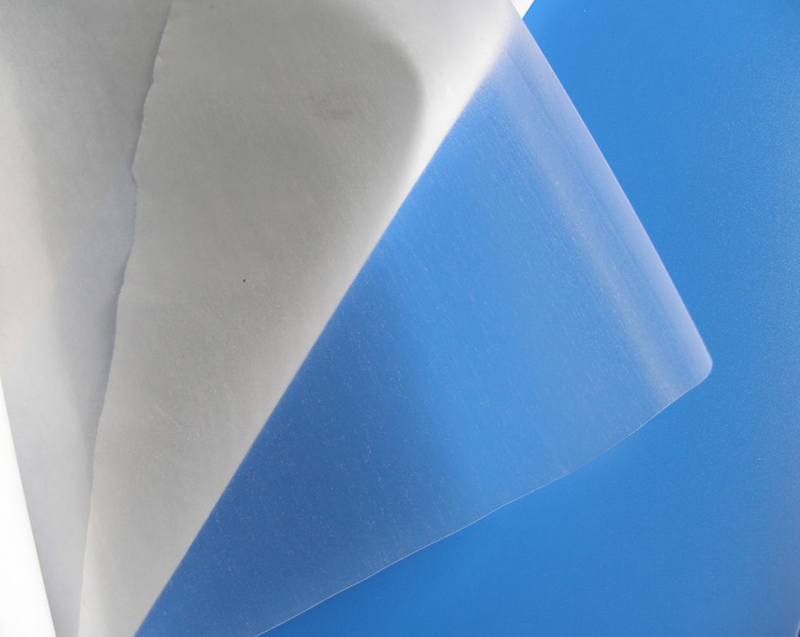

PES hot melt adhesive film is a hot melt adhesive film product with polyester as the main raw material. It has relatively good adhesion to a variety of materials such as metal, ceramics, fabrics, wood, plastics, rubber, etc., so it can be widely used. Used in clothing, electrical appliances, shoe materials, automotive interiors, construction and other industries.
| PES hot melt adhesive film (with paper/without paper) | |||||
| Product code | ZPMS-film001 | ZPMS-film002 | ZPMS-film003 | ZPMS-film004 | ZPMS-film005 |
| Supply form | film | film | film | film | film |
| Thickness (mm) |
0.02-0.2 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 |
| Width (mm) |
5-1600 | 5-1600 | 5-1600 | 5-1600 | 5-1600 |
| Melting point ( ℃ ) |
60 | 85 | 115-120 | 120-130 | 150-160 |
| Bond strength (N/5cm 2 ) |
>10 | >10 | >10 | >10 | >10 |
| Washability (40℃) |
** | *** | *** | *** | *** |
| Washability (60℃) |
* | ** | ** | ** | ** |
| Dry cleaning resistance (℃) |
— | — | — | ** | ** |
| Pressing temperature (℃) |
80-90 | 110-115 | 135-150 | 150-160 | 170-180 |
| Pressing time (S) |
15-20 | 15-20 | 15-20 | 15-20 | 15- -20 |
| Pressure(kgf/cm 2 ) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
| Applicable to | Suitable for various textile fabrics, PVC, ABS, PET, metal fiber boards, various plastics, oily leather and various artificial leathers, mesh cloth, aluminum foil, aluminum plates, veneer, reflective thermal film, aluminum foil mylar, TPR, conductive cloth, polyethylene Ester foam, polyether foam, PU sponge, flocking transfer, etc.; main application areas: clothing, accessories, shoe labels, seamless shoe materials, reflective materials, electronic shielding EMI, etc. | ||||
| Note: The pressing conditions are for reference only and are related to the pressing equipment, thickness of the bonded material, and pressure. Users need to confirm experimentally according to specific conditions. | |||||
| ***: Very good **: Good *: OK —: Not recommended NO: No data | |||||
